Features and Benefits:

• 1-Stage Pump
• 3.4hp Running, 7hp Peak Motor
• 60 Gallon Vertical Tank (Made in the USA)
• Air Output 90-135 PSI
• Extremely Quiet Operation
• Set of Vibro-Isolation Pads Included
• Hands free tank drain extension
• Compressor oil drain extension tube
• Finned tank inlet tube for reduced tank water accumulation
• Heavy Duty metal Belt Guard
• Electric: 220volt/1phase
• 1 Year Parts Only Warranty

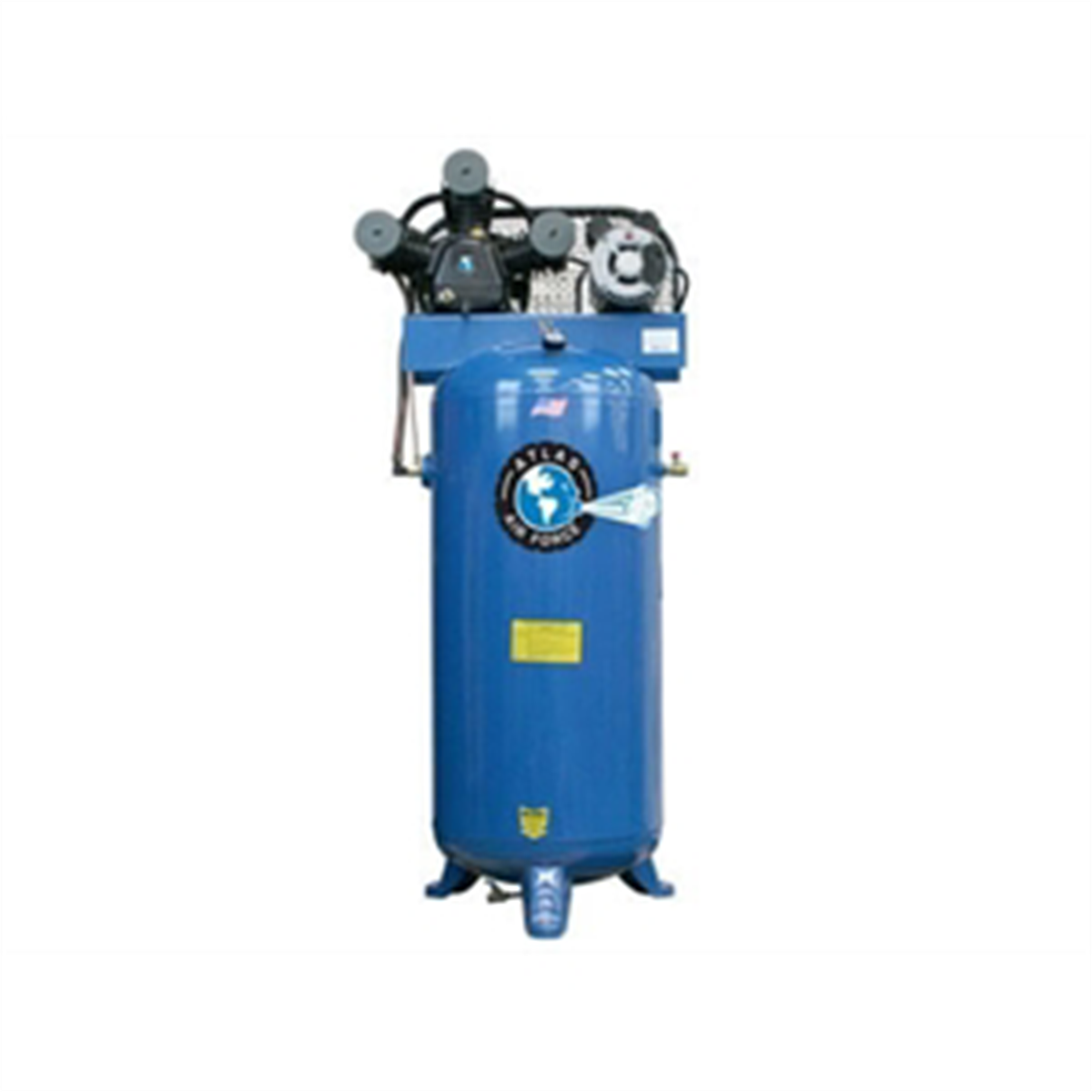

The Atlas Air Force AF4 air compressor utilizes a 3 cylinder single stage pump as compared to the 2 cylinder pump of the Atlas Air Force AF3. The AF4 also comes standard with a slightly more efficient motor than the AF3. This allows the Atlas AF4 to produce air faster for the shop operater who cannot wait. The no-load recovery time of the AF4 is twice as fast as the AF3 (only 1 minute and 40 seconds).

The Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas Air Force shop compressors are built to the same exacting standards as the entire line of Atlas professional grade automotive equipment

Atlas Air Force AF4 Specifications

• Motor Running: 3.4 Horsepower
• Motor Peak: 7 Horsepower
• Pressure Setting: 90-135 PSI
• Delivered CFM at 40 PSI: 15
• Delivered CFM at 90 PSI: 13.7
• Tank Capacity: 60 Gallons
• Compressor Pump: PP65 3 Cylinder, 1-Stage
• Air Outlet Size: 1/2" NPT
• Overall Dimensions: L 25 1/2" x W 18" x H 65 3/4"
• Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
• Shipping Weight: 380 lbs
