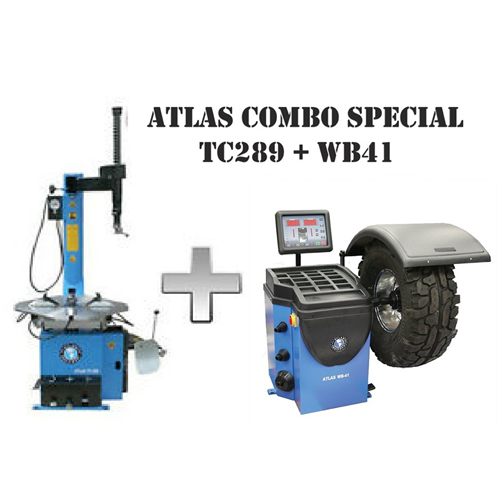

Tire Changer & Wheel Balancer Combo Package:

Atlas TC289 Tire Changer

• Rim Clamp/Swing Arm Tire Changer
• Extra Large Turntable, More Clearance
• Built-in "Beadblaster"
• Adjustable Bead Breaker Plate
• Adjustable jaws, 3 mounting positions
• Oiler, Filter, Regulator included (external air supply required)
• Plastic Protectors included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

Atlas WB41 Wheel Balancer

• Computer Controlled Spin Balancer
• Raised, Easy to Read Display
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self Diagnosis/Self Calibration
• Display in grams or ounces, in mm or inches
• 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included

This combination package includes the Atlas TC289 rim-clamp swing arm tire changer & the Atlas WB41 computerized spin balancer. This combination is perfect for farms, homeowners, and all sizes of shops looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas 1 year parts only warranty. This part number is FREIGHT PREPAID.

Atlas TC289 Specifications

• External Locking Rim Dimensions (From Narrow Position to Wide Position): 11 7/8" to 27 7/8"
• Internal Locking Rim Dimensions (From Narrow Position to Wide Position): 13 7/8" to 29 7/8"
• Maximum Tire Diameter: 47"
• Maximum Wheel Width (Bead Breaker): 18"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs.
• Bead Breaker: 5500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Electric Requirement: 110volt
• Shipping Weight: 620 lbs

• Max Tire Diameter: 39"
• Rim Sizes (Cars & Light Trucks): 10" - 32"
• Rim Width: 1 1/2" - 20"
• Shaft Size: 40mm
• Max Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurement: Standard or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibrating: YES
• Motor: 1/4 Horsepower
• Electric Requirement: 110volt
• Shipping Weight: 400 lbs

Accessories Available

• Center Post Adapter
• Quick Change Plastic Head Kit
• Left Hand Assist Arm
• Replacement Plastic Insert Kit for MD Head
• Light Truck Adapter Kit
• Universal Lugcentric Adapter
