Features and Benefits:

WAE75000 Auto Wave Voltage and Signal Waveform Viewer

• Color LCD Screen Provides clear waveforms for easy viewing
• Simple to set up and use. Quickly identify that a signal or voltage is present
• Sample rate of up to 1 million samples/sec provides real-time waveform acquisition
• Auto-set function sets voltage/time scale for a more detailed view of waveform
• Zoom/Pan, capture and save waveforms. Allows for in-depth waveform analysis

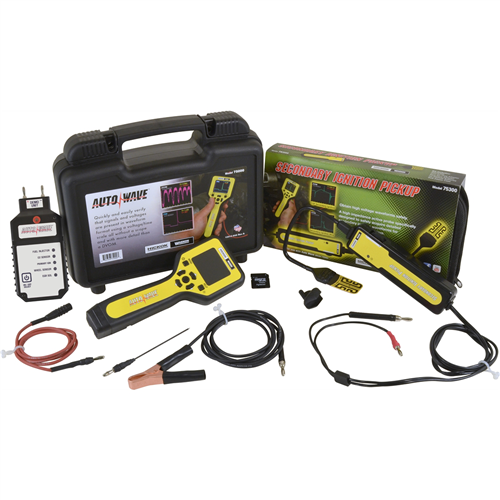

• Kit includes: AutoWave, Signal Probe Extender Cable, 4GB SD Card & Adapter, Ground Cable and Storage Case

Scope Out Voltage Without The Scope! Quickly and easily verify signals and voltages are present in waveform format on the multi-color LCD screen. Auto Set and Pan/Zoom functions adjust the voltage and time scales so you can view waveforms in greater detail. Capture and Save waveforms to the 4GB SD card for detailed analysis and viewing on a PC. Auto Wave is a must have for any technician who wants to save diagnostic time accessing detailed waveform data.

WAE75300 Secondary Ignition Pickup Adapter

• High impedance active pickup
• Provides accurate secondary ignition waveforms
• COP and secondary wire adapter
• Works on multiple ignition system types
• Long flexible probe acceses hard to reach ignition systems

The Secondary Ignition Pickup Adapter is specifically designed to acquire high voltage secondary ignition waveforms for viewing on the 75000 Auto Wave. The SIP adapter has a long flexible probe for those hard to reach ignition systems. Comes with two adapters for use on Secondary Ignition Wires and Coil On Plug ignition systems. Used with Auto Wave, SIP provides a window into what's going on in the combustion chamber.

WAE75011 Auto-Wave Demo Unit

• Quick and easy hook up to Auto Wave
• One button operation to toggle and select wave form to simulate
• Demonstrate auto set, zoom/pan and save features of Auto Wave in seconds
• Simulates signals for fuel injectors O2 sensors, primary ignition, wheel speed sensors and EGR solinoids
• Operates on a 9V battery

The 75011 Auto Wave Demo Unit is a simple signal simulator designed to aid in the demonstration the 75000 Auto Wave. The unit produces waveform signals for fuel injectors O2 sensors, primary ignition, wheel speed sensors and EGR solenoids.
