Evocharge Evc3Ab0B1A1A4
Ievse Wifi-Enabled, Single Port Pedestal-Mount Ele

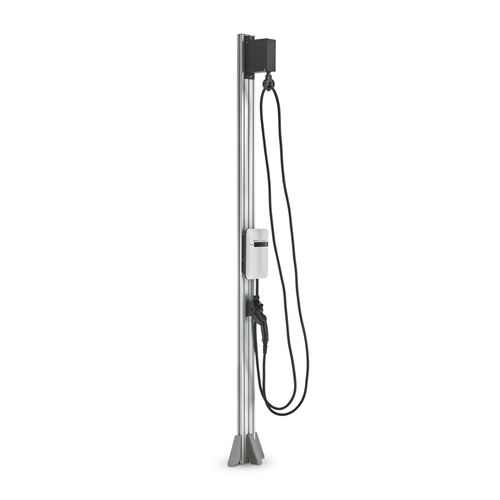

Evocharge Evc3Ab0B1A1A4 Ievse Wifi-Enabled, Single Port Pedestal-Mount Ele
Hover or click to zoom

MSRP: $3,689.33
Tool Shack Price: $2,520.86
MFR Part No: EVC3AB0B1A1A4

Quantity in Stock:Out of Stock

SKU Number: EVOEVC3AB0B1A1A4
Qty:

Description

Features and Benefits: ?Compatibility - Compatible with all Electric Vehicles and Plug-in Hybrid Electric Vehicles sold in the United States and Canada, including Tesla (requires adapter) Connector / EVSE LEVSEl - SAE J1772 ?AC LEVSEl 2 Max Output Rating - 30A ?7.2 kW Maximum Output ? For use with dedicated 40A (or greater) Supply Circuit Alternate Adjustable Output Settings 24A ?5.76 kW Maximum Output ? For use with 30A Circuit Rating 16A 3.84 kW Maximum Output ? For use with 20A Circuit Rating Electrical Circuit / Input Power Requirements - 208-240VAC, 50/60 Hz., Single Phase ?Circuit Requirement: Dedicated ?Branch Breaker: Double pole ?Circuit Conductors: Line 1, Line 2, Earth Ground Input Power Connection - Hardwire Operational Ratings - NEMA 4, Indoor/Outdoor Rated ?Temp: -22?F to 122?F (-30?C to 50?C) ?Humidity: 95% RH Mounting: single charger and retractor mounted on an 8 foot pedestal Cable Management - Standard Connector, Cable Holster, retractor and 8 foot pedestal Dimensions - EVSE: 11.0 x 7.5 x 3.2 inches (28.0 x 19.0 x 8.1 cm) Retractor: 9.5 x 3 x 6.75 inches (24.1 x 7.6 x 17.1 cm) Pedestal: 8 ft. (2.4 m) Display & Indicators - LED Charge Status Indicators (Power/Ready, Charging, Fault) Standards & Compliance - Charging Station: UL/cUL Listed ?SAE J1772, UL 2594, UL 355, CSA The EvoCharge iEVSE charging station has a modern compact design with robust construction for maximum durability. The Retractor has a spring loaded tether that suspends the cable for convenient storage and is designed to be mounted to the wall, pedestal, or ceiling. The 8 foot pedestal is made of high-strength aluminum suitable for single or dual station mounting with retractors. The iEVSE is OCPP 1.6 WiFi enabled to support access control, data collection, and demand response. The station can connect to local utility company and network provider to monitor charging.
Size: L 98 in. x W 19 in. x H 15 in.
