Features and Benefits:

• Trivalent zinc plating for durability and resistance to corrosion
• exceeds 72-hour salt spray test
• Straight fitting for applications where having no angle to the fitting makes it easier to reach
• 5/16" hex size
• 1/4"-28 special taper threading for an untapped recommended hole size of .230" to .235", creating a leak-proof seal

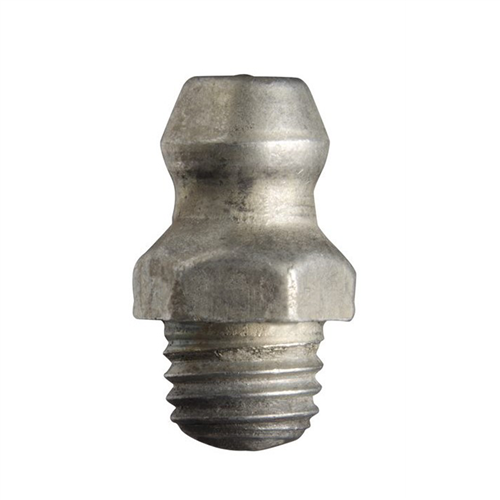

"ALEMITE" THREAD FORMING FITTINGType: straight.Hex size: 5/16"230 - .235 Hole size recommended.Thread: 1/4"-28 spl. taper.Threads provide strong seal Exceeds 72-hour salt-spray test Maximum pressure: 8,000 psi


Length 0.25in. X Width 0.25in. X Height 0.25in.
