Features and Benefits:

• Frame capable of performing 4-Wheel alignment and ADAS calibration
• Includes targets, patterns, and calibration components to calibrate cameras, radar, LIDAR, Night Vision units
• Six high-resolution positioning and tracking cameras in frame
• Includes 24 touchscreen display that attaches to frame unit
• Alignment coverage includes U.S., Asian and European vehicles, 1996 and newer
• Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen
• MaxiSYS software interface monitors and displays alignment measurements
• Cameras automatically track vehicle height on shop lift
• Includes four-wheel clamps with camera targets, steering wheel lock and wheel chocks
• One-year limited warranty

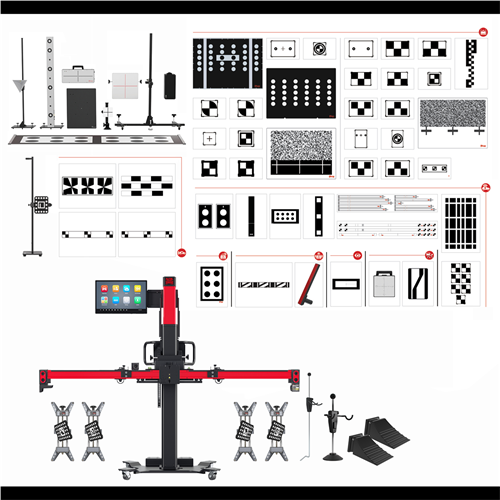

MaxiSYS ADAS IA900WA Wheel Alignment and ADAS Frame with All Systems ADAS Calibration package includes the MaxiSYS IA900WA Wheel Alignment and ADAS calibration frame that enables the performance of four-wheel alignment and ADAS component calibration. Includes targets, patterns, and calibration components to calibrate cameras, radar, LIDAR, Night Vision units. Software includes illustrated alignment instructions, live readings, required tools, and adjustment locations display on included 24 touchscreen screen. Alignment coverage for U.S., Asian and European vehicles, 1996 and newer. Six high-resolution positioning and tracking cameras in frame automatically monitor vehicle height on shop lift. Robotic frame movement for efficient use and alignment reading accuracy to 0.02 degrees for precise alignments. Includes four wheel clamps with camera targets, steering wheel lock and wheel chocks. One-year limited warranty.


Length 159in. X Width 88in. X Height 44in.
