Features and Benefits:

• Frame capable of performing 4-Wheel alignment and ADAS calibration
• Includes targets, patterns and calibration components to calibrate cameras, radar, LIDAR, Night Vision units
• Includes 12.9-inch MaxiSYS ULTRAADAS wireless touchscreen tablet with Alignment and ADAS Calibration software
• Includes 24 touchscreen display that attaches to frame unit that can cast to and from ULTRAADAS
• Alignment coverage includes U.S., Asian and European vehicles, 1996 and newer
• Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen
• Includes four-wheel clamps with camera targets, steering wheel lock and wheel chocks
• Robotic frame movement
• Cameras automatically track vehicle height on shop lift
• One-year limited warranty

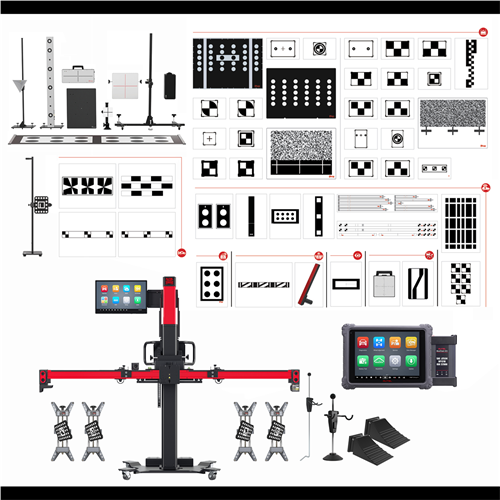

MaxiSYS ADAS IA900WA with All Systems calibration components and ULTRAADAS tablet package includes the MaxiSYS IA900WA Wheel Alignment and ADAS calibration frame that enables the performance of four-wheel alignment and ADAS component calibration and includes targets, patterns and calibration components to calibrate cameras, radar, LIDAR, Night Vision units and the ULTRAADAS tablet with preloaded Alignment and ADAS software. Software includes illustrated alignment instructions, live readings, required tools, and adjustment locations display on included 24 touchscreen screen. Alignment coverage for U.S., Asian and European vehicles, 1996 and newer. Six high-resolution positioning and tracking cameras in frame automatically monitor vehicle height on shop lift. Robotic frame movement for efficient use and alignment reading accuracy to 0.02 degrees for precise alignments. Includes four wheel clamps with camera targets, steering wheel lock and wheel chocks. One-year limited warranty.


Length 159in. X Width 88in. X Height 44in.
