Features and Benefits:

• MaxiFlash VCMI Vehicle Communication Interface, J2534 pass thru programmer, 4-channel oscilloscope, waveform generator, multimeter, and CAN-Bus tester
• Compatible with the MaxiSYS Ultra and MaxiSYS MS919 diagnostic tablets
• VCMI can be powered independently via its rechargeable lithium battery
• Includes OBDII Main Cable, AC/DC power supply, USB 2.0 cable
• Includes Scope test leads (4 pcs), Multimeter test leads (2 pcs)
• Includes Breakout Leads (6 pcs, 4 sizes: 0.6 mm, 1.5 mm, 2.3 mm and 2.8 mm)
• Includes two Flexible Back-Pinning probes and five Back-Pinning probes (red, green, blue, yellow, black), 20 Back-Probe needles, two Probe screws
• Includes two Large Dolphin clip, SA057 (red) and SA058 (black), and two small Crocodile clips, SA059 (red) and SA060 (black)
• Includes two 20:1 passive Attenuators and plastic tool box to store smaller kit pieces
• One Year Limited Warranty

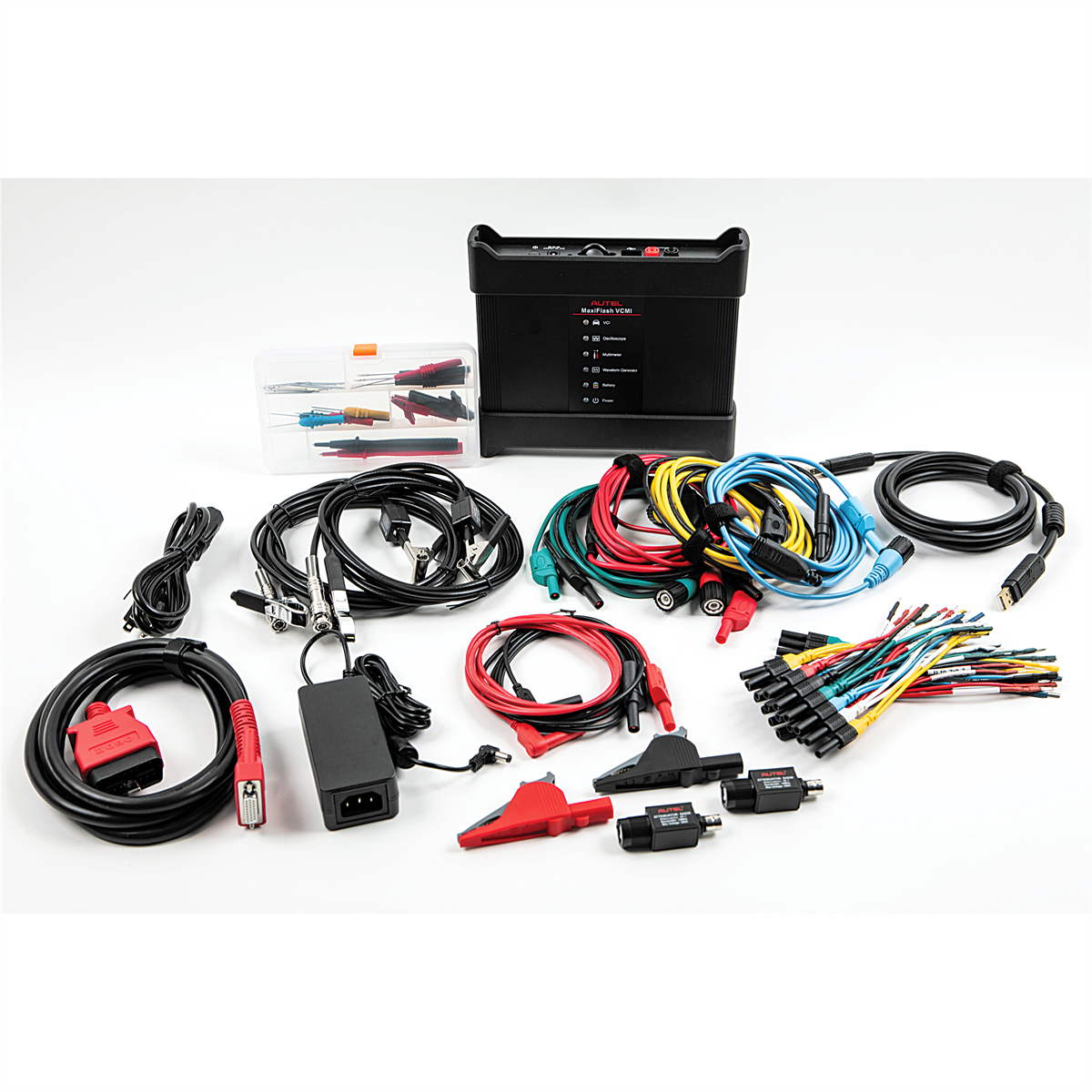

MaxiFlash VCMI Kit, compatible with the MaxiSYS Ultra and MaxiSYS MS919 diagnostic tablets, includes VCMI capable of acting as vehicle communication interface (VCI), J2534 pass-thru programming device, multimeter, 4-channel oscilloscope, waveform generator and CAN-Bus tester plus operating and power cables, probes, leads and attenuator to perform measurements. Includes OBDII main cable, AC/DC power supply, USB 2.0 cable, Scope test leads, Multimeter test leads, Flexible and standard Back-Pinning probes, large Dolphin and small Crocodile clips, Attenuators and plastic tool box for small kit pieces. Includes one-Year Limited Warranty.


Length 15in. X Width 10in. X Height 5.5in.
